LT3014BHVEDD#TRPBF - Analog Devices

Description: 20mA, 3V to 80V Low Dropout Micropower Linear Regulator

Download LT3014BHVEDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

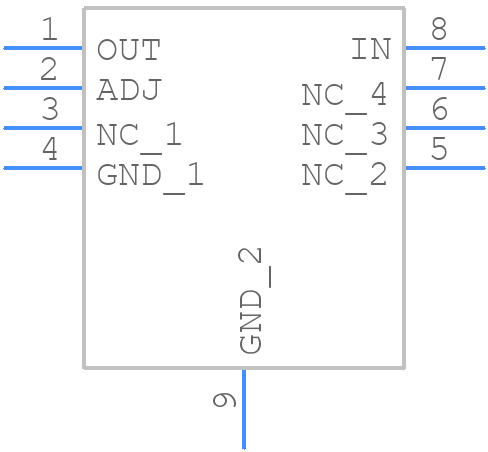

LT3014BHVEDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3014BHVEDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom
3D Models
LT3014BHVEDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom

LT3014BHVEDD#TRPBF Details

  • Manufacturer Part Number:

    LT3014BHVEDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.57 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.015

  • Load Regulation-Max(%):

    3.27868%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.02 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3014BHVEDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3014BHVEDD#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, avoid using long, thin traces and minimize the area of the power and ground planes to reduce parasitic inductance.
  • The LT3014BHVEDD#TRPBF is rated for operation from -40°C to 125°C. However, for reliable operation, it's recommended to keep the ambient temperature between 0°C and 85°C to ensure optimal performance and minimize thermal stress.
  • While it's possible to use a different output capacitor value or type, it's not recommended as it may affect the stability and performance of the device. The recommended output capacitor values and types are specified in the datasheet to ensure optimal performance and stability.
  • To minimize EMI and RFI, use a shielded enclosure, keep the device and associated components away from noise sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling between traces.
