LT3014BIDD#PBF - Analog Devices

Description: 20mA, 3V to 80V Low Dropout Micropower Linear Regulator

Download LT3014BIDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

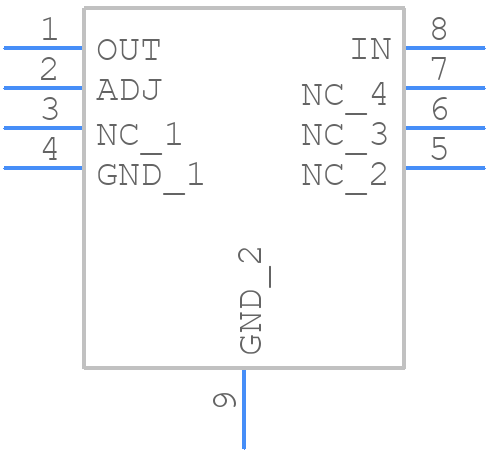

LT3014BIDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3014BIDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom
3D Models
LT3014BIDD#PBF - Analog Devices - 3D model - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom

LT3014BIDD#PBF Details

  • Manufacturer Part Number:

    LT3014BIDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.57 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.015

  • Load Regulation-Max(%):

    3.27868%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.02 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3014BIDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3014 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network configuration, use a sufficient output capacitor, and ensure that the input and output impedance are within the recommended ranges. Additionally, it's recommended to use a low-ESR output capacitor and to avoid using a capacitor with a high inductance.
  • The maximum input voltage that the LT3014 can handle is 36V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the recommended range.
  • The LT3014 is rated for operation up to 125°C. However, it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Additionally, it's essential to ensure that the device is properly heatsinked to prevent overheating.
  • To troubleshoot issues with the LT3014, it's recommended to check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Additionally, check the PCB layout, component values, and soldering quality to ensure that they meet the recommended specifications. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
