LT3014BIDD#TRPBF - Analog Devices

Description: 20mA, 3V to 80V Low Dropout Micropower Linear Regulator

Download LT3014BIDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

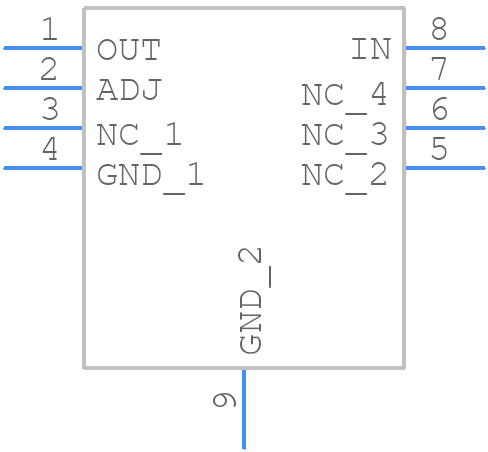

Symbol
LT3014BIDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3014BIDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom
3D Models
LT3014BIDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - D Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)/.
click to zoom

LT3014BIDD#TRPBF Details

  • Manufacturer Part Number:

    LT3014BIDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.57 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.015

  • Load Regulation-Max(%):

    3.27868%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.02 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3014BIDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a solid copper plane, using thermal vias to connect the plane to the device's thermal pad, and keeping the plane as close to the device as possible. Additionally, using a 4-layer board with a dedicated thermal layer can help to dissipate heat more efficiently.
  • To ensure reliable startup and shutdown, it's essential to follow the recommended power-up and power-down sequencing in the datasheet. Additionally, using a soft-start circuit can help to reduce inrush current and prevent voltage overshoots during startup.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even damage to the device. It's essential to ensure that the device is operated within the recommended voltage, current, and temperature ranges to maintain its performance and longevity.
  • To troubleshoot issues with the device's output voltage regulation, start by verifying that the input voltage is within the recommended range and that the output voltage is properly decoupled. Check for any signs of oscillation or instability, and ensure that the device is properly configured and biased. If the issue persists, consult the datasheet and application notes for further guidance.
  • To minimize EMI and RFI, it's essential to follow good PCB layout practices, such as keeping the device's input and output traces short and away from noise-sensitive areas. Additionally, using shielding, filtering, and decoupling can help to reduce electromagnetic interference and radio-frequency interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3014BIDD#TRPBF Overview

Use the download button to access the LT3014BIDD#TRPBF schematic symbol, PCB footprint, and 3D model.
