LT3014HVEDD#TRPBF - Analog Devices

Description: Wide Input Voltage Range: 3V to 80V n Low Quiescent Current: 7µA n Low Dropout Voltage: 350mV n Output Current: 20mA

Download LT3014HVEDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

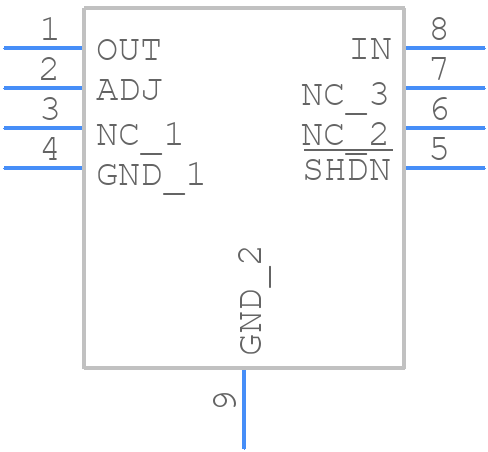

LT3014HVEDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3014HVEDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698)
click to zoom
3D Models
LT3014HVEDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698)
click to zoom

LT3014HVEDD#TRPBF Details

  • Manufacturer Part Number:

    LT3014HVEDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-299WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.57 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.015

  • Load Regulation-Max(%):

    3.27%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.02 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3014HVEDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the device away from other heat sources. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure reliable start-up and operation with a high-impedance input source, add a 10nF to 100nF capacitor between the input pin and GND to filter out noise and reduce the impedance. Additionally, consider adding a soft-start circuit to limit the inrush current.
  • The LT3014 can drive a maximum capacitive load of 10uF. Exceeding this limit may cause oscillations or instability. If a larger capacitive load is required, consider adding a series resistor or inductor to dampen the output.
  • To protect the device from overvoltage and overcurrent conditions, add a TVS diode or a zener diode between the input pin and GND to clamp the voltage. Additionally, consider adding a current-limiting resistor or a fuse in series with the input to prevent overcurrent conditions.
  • A recommended input filter configuration for noise reduction involves adding a pi-filter (L-C-R) or an LC filter between the input pin and GND. The values of the components depend on the specific noise frequency and amplitude.
