LT3015EMSE-2.5#PBF - Analog Devices

Description: LDO Voltage Regulators 1.5A, Low Noise, Negative Linear Regulator with Precision Current Limit

Download LT3015EMSE-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

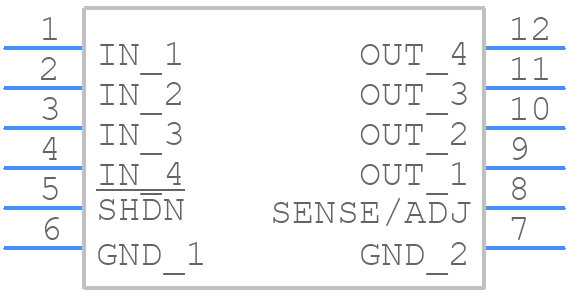

Symbol
LT3015EMSE-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3015EMSE-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP[---- **
click to zoom
3D Models
LT3015EMSE-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP[---- **
click to zoom

LT3015EMSE-2.5#PBF Details

  • Manufacturer Part Number:

    LT3015EMSE-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.31 V

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Load Regulation-Max:

    0.018%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LT3015EMSE-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3015 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer board with a dedicated power plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. A minimum output capacitance of 10uF is recommended.
  • The LT3015 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet for thermal derating information.
  • Yes, the LT3015 is available in a variety of grades, including the 'MP' grade for high-reliability applications and the 'H' grade for automotive applications. These grades have additional testing and screening to ensure higher reliability and performance.
  • The power dissipation of the LT3015 can be calculated using the equation: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Consult the datasheet for more information.
