LT3020IMS8-1.8#PBF - Analog Devices

Description: LDO Regulator Pos 1.8V 0.1A Automotive 8-Pin MSOP Tube

Download LT3020IMS8-1.8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

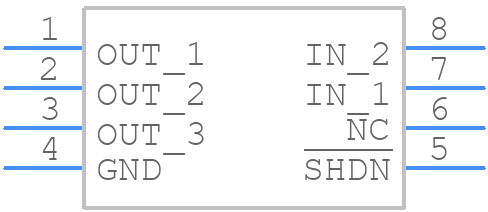

LT3020IMS8-1.8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3020IMS8-1.8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT3020IMS8-1.8#PBF
click to zoom
3D Models
LT3020IMS8-1.8#PBF - Analog Devices - 3D model - Small Outline Packages - LT3020IMS8-1.8#PBF
click to zoom

LT3020IMS8-1.8#PBF Details

  • Manufacturer Part Number:

    LT3020IMS8-1.8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.285 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.1 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    1.854 V

  • Output Voltage1-Min:

    1.737 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3.5%

  • Width:

    3 mm

LT3020IMS8-1.8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3020 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended output capacitor selection guidelines, use a minimum output capacitance of 10uF, and avoid using capacitors with high ESR. Additionally, ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
  • The maximum input voltage that the LT3020 can handle is 36V, but it's recommended to operate the device within the specified input voltage range of 2.3V to 36V for optimal performance and reliability.
  • The LT3020 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • The power dissipation of the LT3020 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the thermal resistance of the package and the PCB when calculating the power dissipation.
