LT3032IDE#PBF - Analog Devices

Description: IC REG LINEAR POS/NEG ADJ 14DFN

Download LT3032IDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

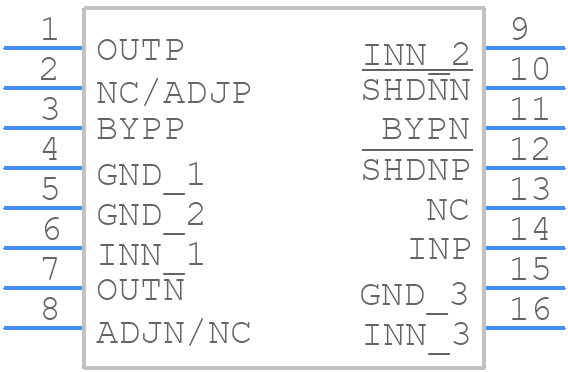

Symbol
LT3032IDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3032IDE#PBF - Analog Devices PCB footprint - Other - Other - LT3032IDE#PBF-3
click to zoom
3D Models
LT3032IDE#PBF - Analog Devices - 3D model - Other - LT3032IDE#PBF-3
click to zoom

LT3032IDE#PBF Details

  • Manufacturer Part Number:

    LT3032IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1731

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3032IDE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3032IDE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small capacitor (e.g., 10nF) between the VIN and GND pins can help improve stability.
  • The maximum output current capability of the LT3032IDE is 3A. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure that the device is properly heatsinked to prevent overheating.
  • The LT3032IDE is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is properly heatsinked to prevent overheating.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 10uF to 100uF, and a voltage rating of at least 2x the output voltage. The capacitor's ESR (Equivalent Series Resistance) should be low, typically < 0.1 ohms.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3032IDE#PBF Overview

Use the download button to access the LT3032IDE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT303, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
