LT3032IDE-5#PBF - Analog Devices

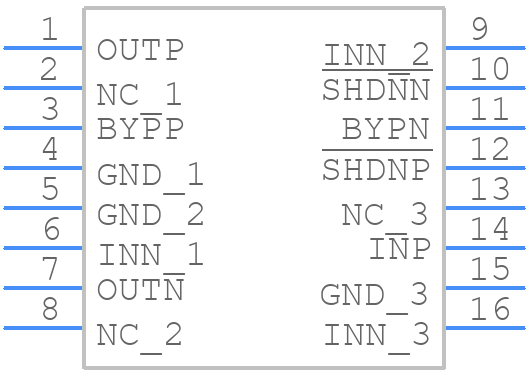

LT3032IDE-5#PBF Details

• Manufacturer Part Number:

  LT3032IDE-5#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-14

• Pin Count:

  14

• Manufacturer Package Code:

  05-08-1731

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.27 V

• Dropout Voltage1-Nom:

  0.15 V

• Dropout Voltage2-Max:

  0.27 V

• Input Voltage Absolute-Max:

  20 V

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  2.3 V

• JESD-30 Code:

  R-PDSO-N14

• JESD-609 Code:

  e3

• Length:

  4 mm

• Line Regulation-Max:

  0.05%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  14

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Current2-Max:

  0.15 A

• Output Voltage1-Max:

  5.15 V

• Output Voltage1-Min:

  4.85 V

• Output Voltage1-Nom:

  5 V

• Output Voltage2-Max:

  -4.85 V

• Output Voltage2-Min:

  -5.15 V

• Output Voltage2-Nom:

  -5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC14,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED MIXED MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
