LT3032MPDE-3.3#PBF footprint, schematic symbol and 3D model by Analog Devices

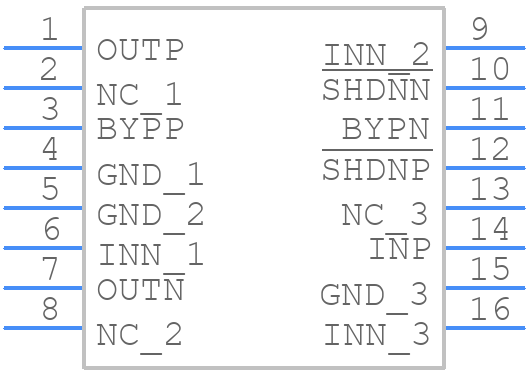

Symbol

click to zoom

PCB Footprints

LT3032MPDE-3.3#PBF - Analog Devices PCB footprint - Other - Other - LT3032MPDE-3.3#PBF-2

click to zoom

3D Models

LT3032MPDE-3.3#PBF - Analog Devices - 3D model - Other - LT3032MPDE-3.3#PBF-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT3032MPDE-3.3#PBF
Part Number LT3032MPDE-3.3#PBF
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LT3032MPDE-3.3#PBF-2
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LT3032MPDE-3.3#PBF Details

Manufacturer Part Number:
LT3032MPDE-3.3#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-14
Pin Count:
14
Manufacturer Package Code:
05-08-1731
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Adjustability:
FIXED
Dropout Voltage1-Max:
0.27 V
Dropout Voltage1-Nom:
0.15 V
Dropout Voltage2-Max:
0.27 V
Input Voltage Absolute-Max:
20 V
Input Voltage-Max:
20 V
Input Voltage-Min:
2.3 V
JESD-30 Code:
R-PDSO-N14
JESD-609 Code:
e3
Length:
4 mm
Line Regulation-Max:
0.03%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
14
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.15 A
Output Current2-Max:
0.15 A
Output Voltage1-Max:
3.4 V
Output Voltage1-Min:
3.2 V
Output Voltage1-Nom:
3.3 V
Output Voltage2-Max:
-3.4 V
Output Voltage2-Min:
-3.2 V
Output Voltage2-Nom:
-3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC14,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Regulator Type:
FIXED MIXED MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Voltage Tolerance-Max:
3%
Width:
3 mm

LT3032MPDE-3.3#PBF Frequently Asked Questions (FAQs)

The recommended PCB layout for the LT3032MPDE-3.3#PBF can be found in the LT3032 demo board manual (DN434) and the LT3032 PCB layout guidelines (AN136) available on the Analog Devices website.
The output capacitor selection for the LT3032MPDE-3.3#PBF should be based on the desired output voltage ripple, output current, and stability. A general guideline is to use a low ESR capacitor with a value between 10uF to 22uF. More detailed information can be found in the LT3032 datasheet and application notes.
The thermal derating for the LT3032MPDE-3.3#PBF is typically 50% at 125°C, meaning the maximum output current should be reduced by 50% at this temperature. More detailed information can be found in the LT3032 datasheet and thermal management application notes.
The LT3032MPDE-3.3#PBF is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Proper thermal management and derating should be considered for high-temperature applications. More detailed information can be found in the LT3032 datasheet and thermal management application notes.
Common issues with the LT3032MPDE-3.3#PBF can be troubleshooted by checking the input voltage, output capacitor selection, PCB layout, and thermal management. More detailed information can be found in the LT3032 datasheet, application notes, and troubleshooting guides available on the Analog Devices website.
