LT3042HMSE#PBF - Analog Devices

Description: 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Download LT3042HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

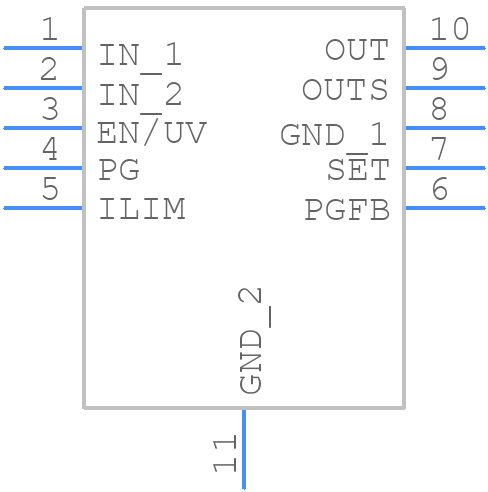

LT3042HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3042HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)-1
click to zoom
3D Models
LT3042HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)-1
click to zoom

LT3042HMSE#PBF Details

  • Manufacturer Part Number:

    LT3042HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3042HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3042 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended compensation network and output capacitor values, and to keep the output capacitor ESR within the recommended range. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
  • The maximum output current of the LT3042 is 500mA, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
  • The LT3042 is rated for operation up to 125°C, but it's essential to derate the output current and ensure proper thermal management to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
  • To troubleshoot issues with the LT3042, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered, and that the input and output capacitors are properly connected. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Consult the datasheet and application notes for more troubleshooting tips.
