LT3042MPDD#PBF - Analog Devices

Description: LDO Voltage Regulators 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Download LT3042MPDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

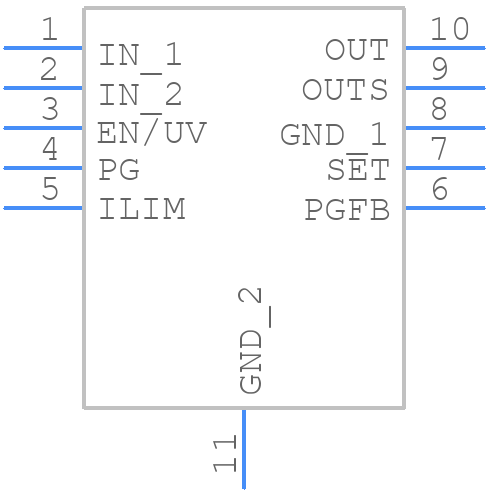

LT3042MPDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3042MPDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN
click to zoom
3D Models
LT3042MPDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Plastic DFN
click to zoom

LT3042MPDD#PBF Details

  • Manufacturer Part Number:

    LT3042MPDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3042MPDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3042MPDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a minimum output capacitance of 10uF, and add a 10nF capacitor from the VOUT pin to GND. Additionally, ensure that the input voltage is within the recommended range, and the output voltage is set correctly.
  • The maximum input voltage that the LT3042MPDD can handle is 15V. Exceeding this voltage may damage the device.
  • The LT3042MPDD is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. It's essential to ensure that the device is properly heatsinked and that the junction temperature is kept below 125°C.
  • The output voltage of the LT3042MPDD can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3042MPDD#PBF Overview

Use the download button to access the LT3042MPDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT304, or try a keyword search, such as Linear Regulator ICs
