LT3042MPDD#TRPBF - Analog Devices

Description: 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Download LT3042MPDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

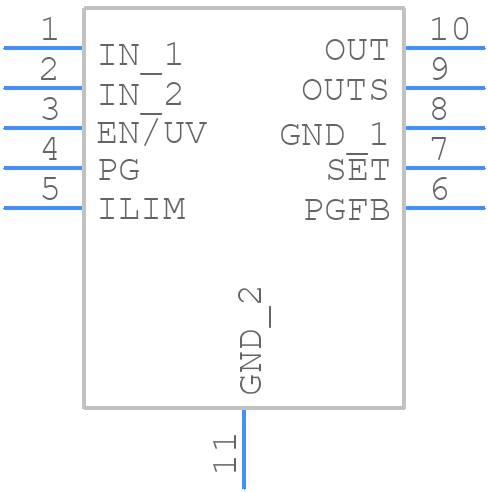

LT3042MPDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3042MPDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT3042MPDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT3042MPDD#TRPBF Details

  • Manufacturer Part Number:

    LT3042MPDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3042MPDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3042MPDD is 2A per channel, with a total maximum output current of 4A for both channels.
  • To optimize the layout, keep the input and output capacitors close to the device, use a solid ground plane, and keep the power traces away from sensitive analog signals. Also, use a shielded inductor and orient it to minimize radiation.
  • The recommended input capacitor value is 10uF to 22uF, and it should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize input ripple and noise.
  • The EN/UVLO pin is active low, so connect it to a logic low signal to enable the output, and connect it to a logic high signal or leave it open to disable the output.
  • The thermal derating of the LT3042MPDD is 26.3°C/W, and you can calculate the maximum ambient temperature using the formula: T_Ambient = T_Junction - (P_Dissipation x θ_JA), where T_Junction is the maximum junction temperature (150°C), P_Dissipation is the power dissipation, and θ_JA is the thermal derating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3042MPDD#TRPBF Overview

Use the download button to access the LT3042MPDD#TRPBF schematic symbol, PCB footprint, and 3D model.
