LT3042MPMSE#TRPBF - Analog Devices

Description: 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Download LT3042MPMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

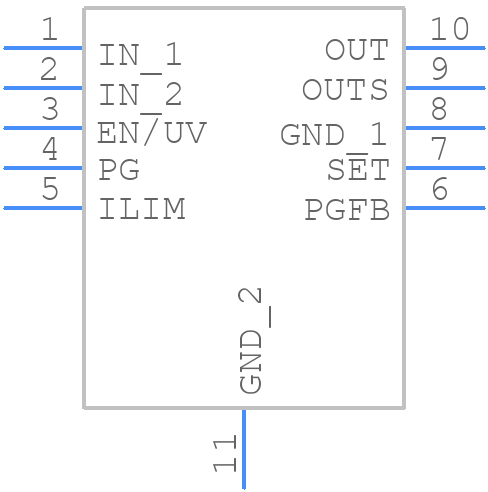

Symbol
LT3042MPMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3042MPMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom
3D Models
LT3042MPMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom

LT3042MPMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3042MPMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3042MPMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3042 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements. A minimum output capacitance of 10uF is recommended, and the ESR of the capacitor should be less than 1 ohm. It's also important to ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
  • The maximum input voltage that can be applied to the LT3042 is 36V. However, it's recommended to operate the device with an input voltage below 30V to ensure reliable operation and to prevent damage to the device.
  • The LT3042 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended operating conditions and to ensure that the device is properly heatsinked to prevent overheating.
  • To troubleshoot issues with the LT3042, start by verifying that the input voltage and current are within the recommended range. Check the output voltage and current to ensure they are within the specified range. Verify that the PCB layout follows the recommended guidelines, and check for any signs of overheating or damage to the device. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
