LT3045EDD-1#PBF - Analog Devices

Description: LDO Voltage Regulators 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045EDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

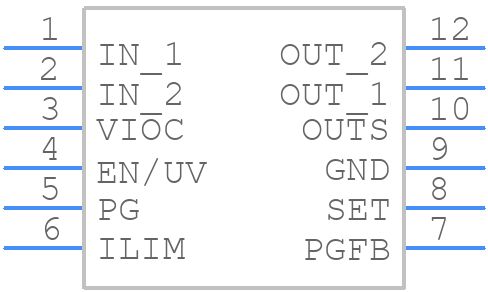

LT3045EDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045EDD-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LT3045EDD-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LT3045EDD-1#PBF Details

  • Manufacturer Part Number:

    LT3045EDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-04-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.26 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045EDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3045EDD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins can help to improve stability.
  • The maximum output current of the LT3045EDD-1#PBF is 500mA. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to consult the datasheet and perform thermal calculations to ensure that the device can deliver the required output current.
  • The LT3045EDD-1#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure that the device can operate reliably in the target environment.
  • To protect the LT3045EDD-1#PBF from input voltage transients and surges, it's recommended to add a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, using a input capacitor with a high voltage rating and a low ESR can help to filter out voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3045EDD-1#PBF Overview

Use the download button to access the LT3045EDD-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT304, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
