LT3045EMSE#TRPBF - Analog Devices

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 12-MSOP-EP

Download LT3045EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

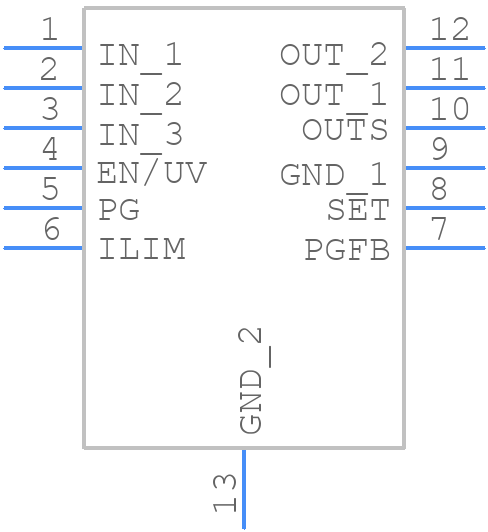

LT3045EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom
3D Models
LT3045EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom

LT3045EMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3045EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3045 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, avoid using capacitors with high ESL and ESR values.
  • The LT3045 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.3V to 15V for optimal performance and reliability.
  • The LT3045 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component values, and decoupling. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
