LT3045HDD#PBF - Analog Devices

Description: 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

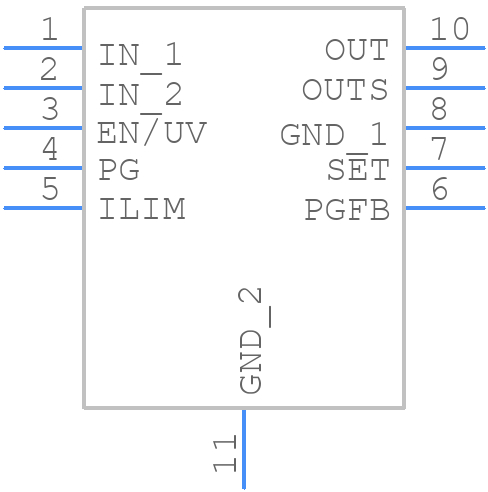

LT3045HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT3045HDD#PBF
click to zoom
3D Models
LT3045HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LT3045HDD#PBF
click to zoom

LT3045HDD#PBF Details

  • Manufacturer Part Number:

    LT3045HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045HDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3045HDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor type and value, and add a compensation capacitor (CFF) between the VFB pin and the output voltage. Additionally, ensure that the input voltage is within the recommended range.
  • The LT3045HDD can deliver up to 5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
  • The LT3045HDD is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the thermal derating curves and ensure proper heat sinking and airflow to maintain a safe operating temperature.
  • The output capacitor should be a low-ESR type with a value between 10uF and 100uF. The capacitor should be rated for the output voltage and have a ripple current rating that meets or exceeds the maximum output current.
