LT3045HMSE#TRPBF - Analog Devices

Description: 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045HMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

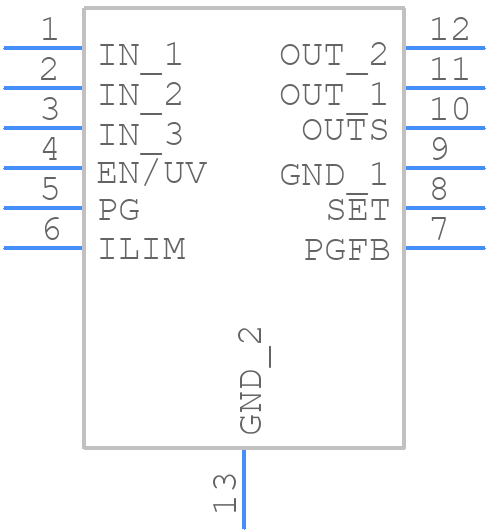

Symbol
LT3045HMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045HMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE 12-LEAD_1
click to zoom
3D Models
LT3045HMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE 12-LEAD_1
click to zoom

LT3045HMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3045HMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045HMSE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3045HMSE#TRPBF is 500mA per channel, with a total maximum output current of 1A for both channels.
  • To ensure stability and prevent oscillations, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the output pin. Additionally, the input capacitor should be placed close to the input pin, and the feedback resistors should be placed close to the feedback pin.
  • The recommended input voltage range for the LT3045HMSE#TRPBF is 2.9V to 15V. Operating the device outside of this range may affect its performance and reliability.
  • The output voltage of the LT3045HMSE#TRPBF can be configured by selecting the appropriate feedback resistors. The datasheet provides a formula for calculating the required feedback resistors based on the desired output voltage.
  • The LT3045HMSE#TRPBF is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's performance and reliability may be affected at high temperatures, and the user should consult the datasheet and application notes for guidance on high-temperature operation.
