LT3045IDD-1#TRPBF - Analog Devices

Description: 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator with VIOC Control

Download LT3045IDD-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

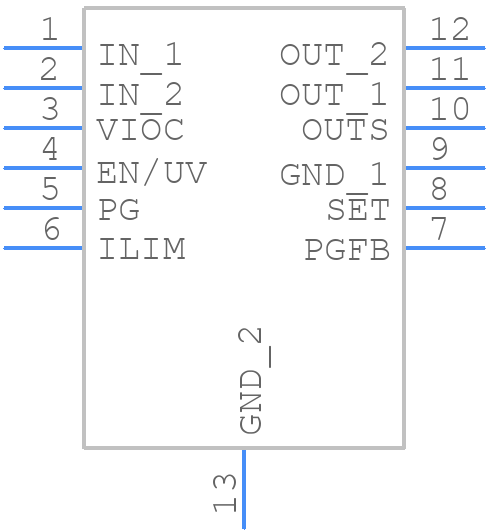

LT3045IDD-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045IDD-1#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom
3D Models
LT3045IDD-1#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom

LT3045IDD-1#TRPBF Details

  • Manufacturer Part Number:

    LT3045IDD-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-04-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.26 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045IDD-1#TRPBF Frequently Asked Questions (FAQs)

  • The maximum output current that can be drawn from the LT3045IDD-1#TRPBF is 500mA. However, it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
  • To minimize noise and ensure optimal performance, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, avoid routing high-frequency signals near the device and use a low-ESR output capacitor.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor such as X5R or X7R. The input capacitor should be placed as close as possible to the VIN pin of the device.
  • The output voltage of the LT3045IDD-1#TRPBF can be calculated using the following formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (2.5V), R1 is the feedback resistor, and R2 is the divider resistor.
  • The thermal shutdown temperature of the LT3045IDD-1#TRPBF is 150°C. The device will shut down when the junction temperature exceeds this value, and will restart when the temperature drops below 140°C.
