LT3045IMSE#TRPBF - Analog Devices

Description: LDO Voltage Regulators 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

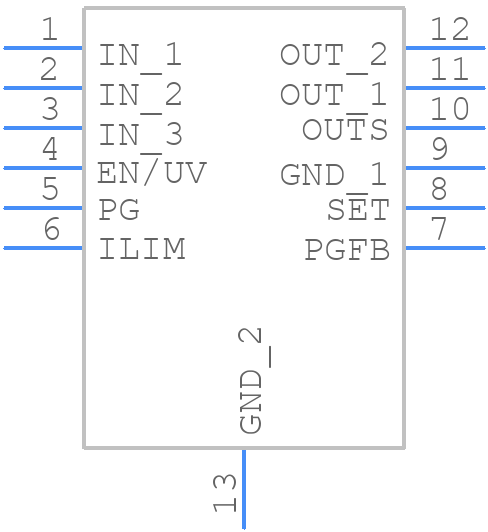

LT3045IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC3245MPMSE#TRPBF
click to zoom
3D Models
LT3045IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - LTC3245MPMSE#TRPBF
click to zoom

LT3045IMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3045IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045IMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3045 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor type and value, and add a compensation capacitor (CFF) between the VFB pin and the output voltage. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The maximum output current capability of the LT3045 is 500mA. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure that the device does not exceed the maximum junction temperature (TJ) of 125°C.
  • The LT3045 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is properly heatsinked to maintain a safe operating temperature.
  • The output capacitor should be selected based on the output voltage, output current, and desired ripple voltage. A low-ESR capacitor with a value between 10uF to 100uF is recommended. The capacitor should also be rated for the maximum output voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3045IMSE#TRPBF Overview

Use the download button to access the LT3045IMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
