LT3045MPDD#TRPBF - Analog Devices

Description: 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045MPDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

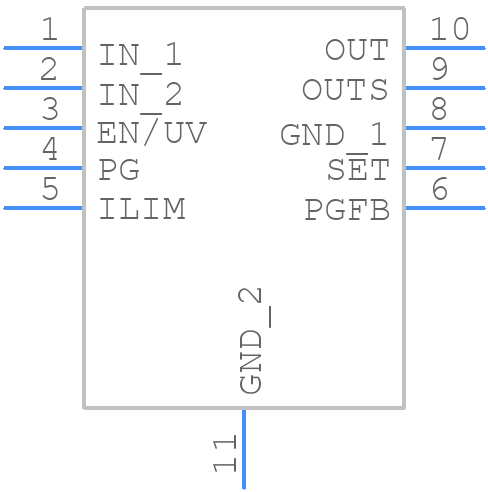

Symbol
LT3045MPDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045MPDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE(H=0.8)
click to zoom
3D Models
LT3045MPDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE(H=0.8)
click to zoom

LT3045MPDD#TRPBF Details

  • Manufacturer Part Number:

    LT3045MPDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045MPDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3045MPDD#TRPBF is 500mA per channel, with a total maximum output current of 1A across both channels.
  • To ensure stability and prevent oscillations, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the output pin. Additionally, the input capacitor should be placed close to the input pin, and the feedback resistors should be placed close to the output pin.
  • The recommended input voltage range for the LT3045MPDD#TRPBF is 2.9V to 15V. Operating the device outside of this range may affect its performance and reliability.
  • The output voltage of the LT3045MPDD#TRPBF can be configured by selecting the appropriate feedback resistors. The datasheet provides a formula for calculating the required feedback resistors based on the desired output voltage.
  • The LT3045MPDD#TRPBF is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's performance and reliability may be affected at high temperatures, and the user should consult the datasheet and application notes for guidance on high-temperature operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3045MPDD#TRPBF Overview

Use the download button to access the LT3045MPDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT304, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
