LT3050EDDB-5#TRMPBF - Analog Devices

Description: IC REG LINEAR 5V 100MA 12DFN

Download LT3050EDDB-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

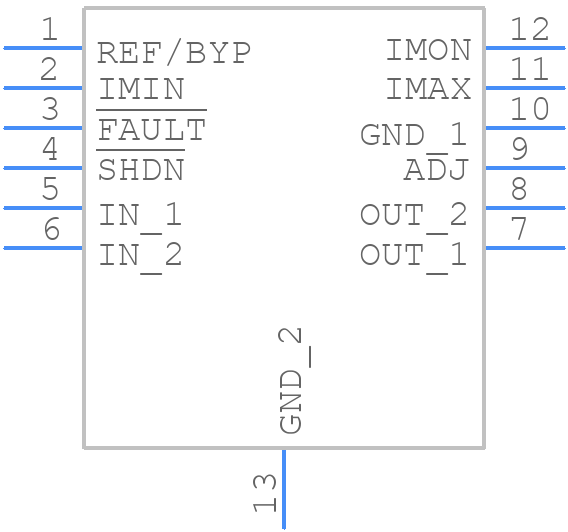

LT3050EDDB-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3050EDDB-5#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 12-Lead Plastic DFN (3mm × 2mm)
click to zoom
3D Models
LT3050EDDB-5#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 12-Lead Plastic DFN (3mm × 2mm)
click to zoom

LT3050EDDB-5#TRMPBF Details

  • Manufacturer Part Number:

    LT3050EDDB-5#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, LEAD FREE, PLASTIC, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1723

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.55 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    1.6 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

LT3050EDDB-5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3050 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. A minimum output capacitance of 10uF is recommended, and the output capacitor should be placed close to the device.
  • The maximum ambient temperature range for the LT3050 is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is properly heat-sinked and that the maximum junction temperature is not exceeded.
  • Yes, the LT3050 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the LT3050, start by verifying that the input voltage and output voltage are within the specified ranges. Check the output voltage ripple and noise to ensure they are within the specified limits. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
