LT3055MPMSE-5#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3055MPMSE-5#PBF - LDO VOLTAGE REGULATOR, FIXED, 5V, 0.5A, MSOP-16

Download LT3055MPMSE-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

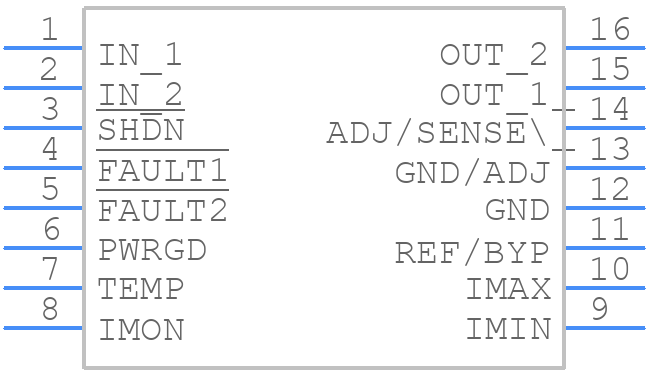

Symbol
LT3055MPMSE-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3055MPMSE-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom
3D Models
LT3055MPMSE-5#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom

LT3055MPMSE-5#PBF Details

  • Manufacturer Part Number:

    LT3055MPMSE-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.59 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Line Regulation-Max:

    0.03%

  • Load Regulation-Max:

    0.033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LT3055MPMSE-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3055 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, avoid using long output traces and minimize the output capacitance.
  • The LT3055 can operate in ambient temperatures up to 125°C, but the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • Yes, the LT3055 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the LT3055, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal management. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
