LT3062EDCB-5#TRMPBF - Analog Devices

Description: LDO Voltage Regulators 45V Vin, Micropower, Low Noise, 200mA LDO with Output Discharge

Download LT3062EDCB-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

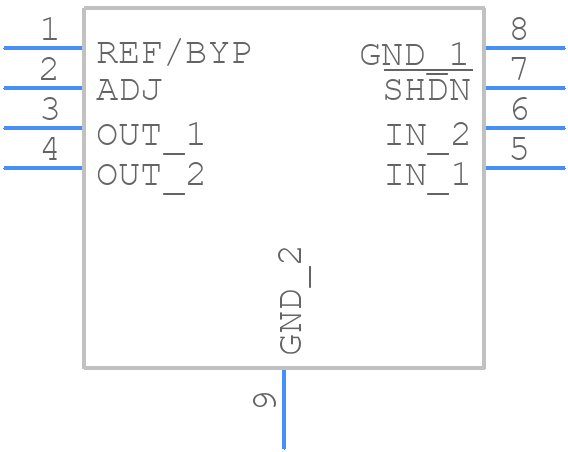

Symbol
LT3062EDCB-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3062EDCB-5#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 8-Lead Plastic DFN (2mm × 3mm)-+
click to zoom
3D Models
LT3062EDCB-5#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 8-Lead Plastic DFN (2mm × 3mm)-+
click to zoom

LT3062EDCB-5#TRMPBF Details

  • Manufacturer Part Number:

    LT3062EDCB-5#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Line Regulation-Max:

    0.033%

  • Load Regulation-Max(%):

    0.039%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

LT3062EDCB-5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3062EDCB-5#TRMPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the feedback resistors (R1 and R2) as close to the device as possible. Also, avoid using long feedback traces and minimize the area of the feedback loop.
  • The maximum ambient temperature for reliable operation of the LT3062EDCB-5#TRMPBF is 125°C. However, it's recommended to derate the device's performance at high temperatures to ensure reliable operation over the entire operating range.
  • While the datasheet recommends a 10uF ceramic output capacitor, you can use other types or values of capacitors. However, be aware that this may affect the device's stability and performance. It's recommended to evaluate the device's performance with the chosen capacitor and adjust the compensation network accordingly.
  • The LT3062EDCB-5#TRMPBF has built-in thermal shutdown and overcurrent protection. In the event of an overcurrent or overtemperature condition, the device will shut down and restart when the condition is removed. You can also use external circuitry to detect and respond to these conditions, such as using a thermal sensor or a current sense resistor.
