LT3062IMS8E-5#PBF - Analog Devices

Description: LDO Voltage Regulators 45V Vin, Micropower, Low Noise, 200mA LDO with Output Discharge

Download LT3062IMS8E-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

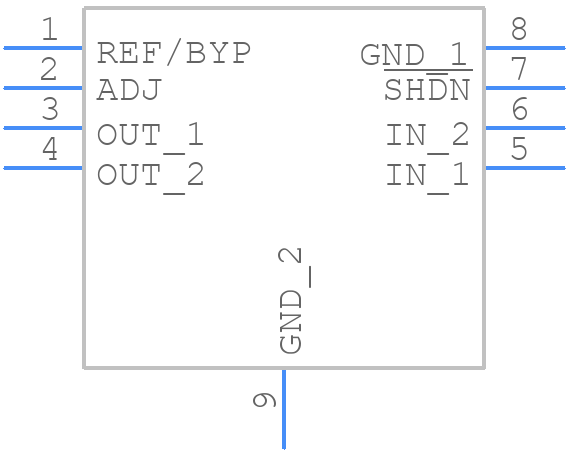

LT3062IMS8E-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3062IMS8E-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LT3062IMS8E-5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LT3062IMS8E-5#PBF Details

  • Manufacturer Part Number:

    LT3062IMS8E-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.033%

  • Load Regulation-Max:

    0.039%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LT3062IMS8E-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3062 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and output capacitor values, and to keep the output capacitor's ESR (Equivalent Series Resistance) low. Additionally, the input and output capacitors should be placed close to the device, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The maximum output current capability of the LT3062 is 2.2A, but this can be limited by the thermal performance of the package and the PCB. It's essential to ensure proper thermal management and heat sinking to achieve the maximum output current.
  • The LT3062 is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's essential to consider the device's thermal performance, power dissipation, and derating factors when operating in high-temperature environments.
  • The output capacitor should be selected based on its ESR, capacitance value, and voltage rating. A low-ESR capacitor with a value between 10uF to 22uF and a voltage rating of at least 2x the output voltage is recommended. The output capacitor should also be placed close to the device to minimize parasitic inductance.
