LT3063MPMS8E#PBF - Analog Devices

Description: LDO Regulator Pos 0.6V to 19V 0.2A Automotive Medical 8-Pin MSOP EP Tube

Download LT3063MPMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

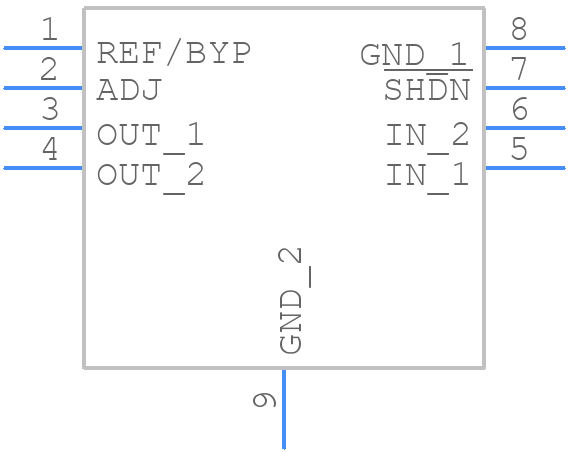

Symbol
LT3063MPMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3063MPMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3063MPMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3063MPMS8E#PBF Details

  • Manufacturer Part Number:

    LT3063MPMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input-Output Voltage Differential-Max:

    44.4 V

  • Input-Output Voltage Differential-Min:

    1.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.02331

  • Load Regulation-Max(%):

    1.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    19 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3063MPMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3063 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. A minimum output capacitance of 10uF is recommended, and the output capacitor should be placed close to the device.
  • The LT3063 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet for thermal resistance and power dissipation information to determine the maximum ambient temperature for your specific design.
  • Yes, the LT3063 is available in a variety of grades, including the MP grade which is suitable for high-reliability applications, and the Q grade which is suitable for automotive applications. Consult the datasheet and Analog Devices' website for more information on the specific grades and their qualifications.
  • The power dissipation of the LT3063 can be calculated using the equation: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Consult the datasheet for the specific values of Iq and other parameters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3063MPMS8E#PBF Overview

Use the download button to access the LT3063MPMS8E#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT306, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
