LT3065EDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3065EDD#PBF - LDO, ADJ O/P, 0.6V-40V, 0.5A, DFN-10

Download LT3065EDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

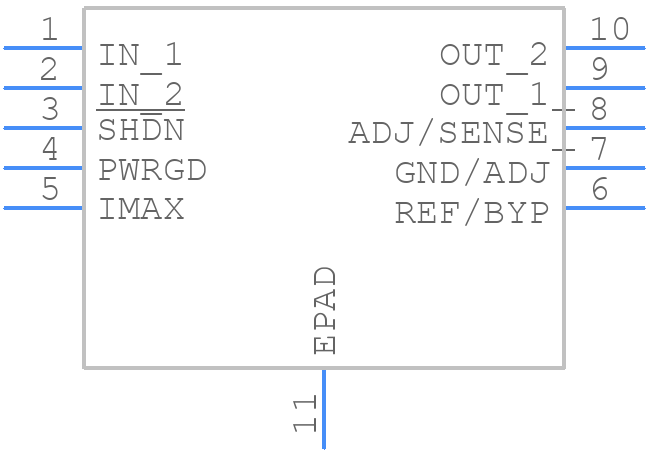

LT3065EDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065EDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-1
click to zoom
3D Models
LT3065EDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DFN-1
click to zoom

LT3065EDD#PBF Details

  • Manufacturer Part Number:

    LT3065EDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max:

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3065EDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3065EDD#PBF can handle is 36V, but it's recommended to operate it within the specified input voltage range of 2.2V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The LT3065EDD#PBF can maintain regulation with a minimum load current of 1mA. However, it's recommended to operate the device with a minimum load current of 10mA to ensure optimal performance and stability.
  • The LT3065EDD#PBF is rated for operation up to 125°C, but it's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation. It's recommended to follow the thermal design guidelines and consider the junction temperature (TJ) when operating the device in high-temperature environments.
  • To reduce the noise and ripple in the output voltage, it's recommended to use a low-ESR output capacitor, add a noise-reducing capacitor (e.g., 10nF) between the VOUT and GND pins, and ensure a low-impedance input source. Additionally, consider using a filter capacitor (e.g., 1uF) between the input and GND pins to reduce input noise.
