LT3065EDD#TRPBF - Analog Devices

Description: 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good

Download LT3065EDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

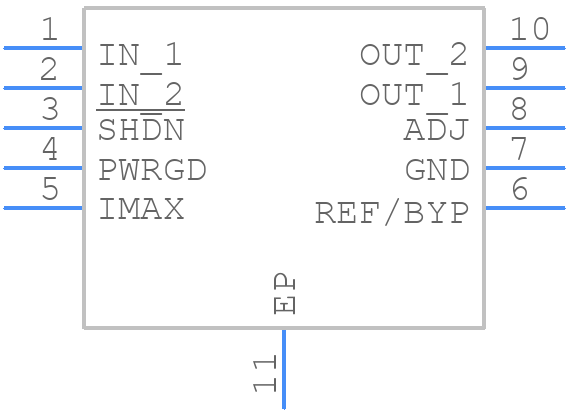

Symbol
LT3065EDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065EDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN PIN 10
click to zoom
3D Models
LT3065EDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DFN PIN 10
click to zoom

LT3065EDD#TRPBF Details

  • Manufacturer Part Number:

    LT3065EDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max(%):

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3065EDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3065EDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, use a minimum output capacitance of 10uF, and consider adding a 1-2 ohm resistor in series with the output capacitor to dampen oscillations. Additionally, ensure the output capacitor's ESR is within the recommended range.
  • The LT3065EDD is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the LT3065EDD is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and other industry standards. However, consult the datasheet and Analog Devices' quality and reliability documentation for specific details.
  • To troubleshoot oscillations, check the PCB layout, output capacitor selection, and input voltage ripple. Ensure the input capacitor is properly sized and placed, and consider adding a 10-100 ohm resistor in series with the output capacitor to dampen oscillations.
