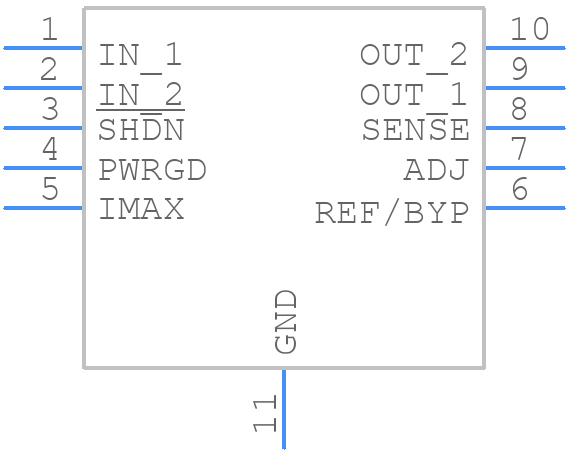

LT3065EDD-1.8#PBF - Analog Devices

LT3065EDD-1.8#PBF Details

• Manufacturer Part Number:

  LT3065EDD-1.8#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1699

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.51 V

• Dropout Voltage1-Nom:

  0.3 V

• Input Voltage Absolute-Max:

  50 V

• Input Voltage-Max:

  45 V

• Input Voltage-Min:

  2.4 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.0105%

• Load Regulation-Max:

  0.12%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  1.836 V

• Output Voltage1-Min:

  1.764 V

• Output Voltage1-Nom:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  2%

• Width:

  3 mm
