LT3065HDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3065HDD#PBF - LDO Voltage Regulator, Adjustable, 1.8V to 45V in, 300mV drop, 600mV to 40V/0.5A out, DFN-10

Download LT3065HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

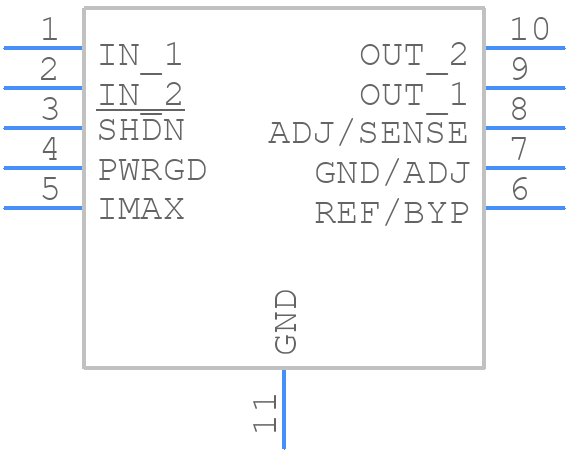

LT3065HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LT3065HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LT3065HDD#PBF Details

  • Manufacturer Part Number:

    LT3065HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max:

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3065HDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3065HDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, it's essential to follow the recommended compensation network, use a low-ESR output capacitor, and avoid high-impedance input sources. Additionally, a minimum output capacitance of 10uF is recommended.
  • The LT3065HDD can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 3.2V to 32V for optimal performance and reliability.
  • The LT3065HDD is rated for operation from -40°C to 125°C, but it's essential to consider the device's thermal characteristics and ensure proper heat sinking to prevent overheating and ensure reliable operation.
  • When selecting an output capacitor, consider the capacitor's ESR, voltage rating, and temperature characteristics. A low-ESR capacitor with a voltage rating above the maximum output voltage and a temperature range that matches the operating conditions is recommended.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3065HDD#PBF Overview

Use the download button to access the LT3065HDD#PBF schematic symbol, PCB footprint, and 3D model.
