Part Image

LT3065HMSE#WPBF - Analog Devices

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 12-MSOP-EP

Download LT3065HMSE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

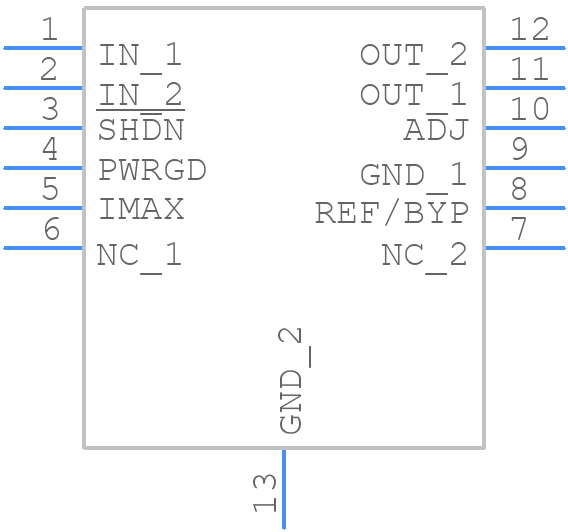

Symbol
LT3065HMSE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065HMSE#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3065HMSE#WPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3065HMSE#WPBF Details

  • Manufacturer Part Number:

    LT3065HMSE#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Line Regulation-Max (%/V):

    0.011682

  • Load Regulation-Max(%):

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3065HMSE#WPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
  • To ensure stability with a high-gain configuration, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor has a low equivalent series resistance (ESR). Additionally, using a low-ESR input capacitor and keeping the input and output traces short and separate can help prevent oscillations.
  • The maximum safe operating junction temperature for the LT3065HMSE#WPBF is 150°C. Exceeding this temperature can lead to reduced reliability and lifespan of the device.
  • While ceramic capacitors can be used for the output filter, they may not be the best choice due to their potential for piezoelectric noise and microphonic effects. Film capacitors or electrolytic capacitors with a low ESR are generally recommended for the output filter to ensure low noise and high stability.
  • The power dissipation of the LT3065HMSE#WPBF can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The resulting power dissipation should be within the recommended operating range to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3065HMSE#WPBF Overview

Use the download button to access the LT3065HMSE#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT306, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
