LT3065MPDD-5#PBF - Analog Devices

Description: LDO Voltage Regulators 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good

Download LT3065MPDD-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

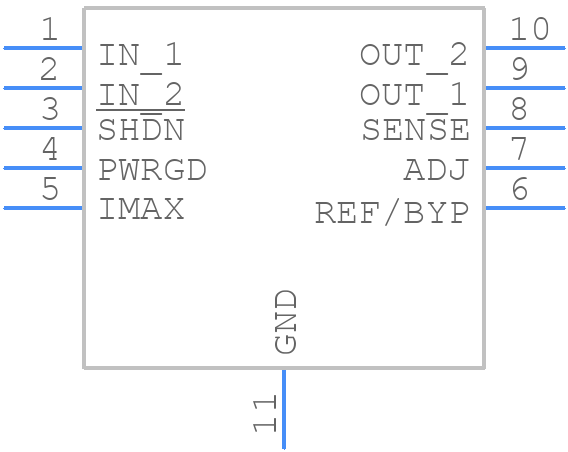

LT3065MPDD-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065MPDD-5#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LT3065MPDD-5#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LT3065MPDD-5#PBF Details

  • Manufacturer Part Number:

    LT3065MPDD-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0292%

  • Load Regulation-Max(%):

    0.0334%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LT3065MPDD-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3065MPDD-5#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network, use a minimum output capacitance of 10uF, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be optimized for minimal noise and EMI.
  • The maximum ambient temperature range for the LT3065MPDD-5#PBF is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3065MPDD-5#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to AEC-Q100 Grade 1, which means it can operate in harsh environments with high temperatures and humidity. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability and performance.
  • To troubleshoot issues with the LT3065MPDD-5#PBF, start by verifying the device's operating conditions, such as input voltage, output current, and ambient temperature. Check the PCB layout for any noise or EMI issues, and ensure that the input and output capacitors are of high quality and have low ESR. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillations or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
