LT3078AV#PBF - Analog Devices

Description: 5.5V, 5A, Ultra-Low Noise, High PSRR, 55mV Dropout Ultra-Fast Linear Regulator

Download LT3078AV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

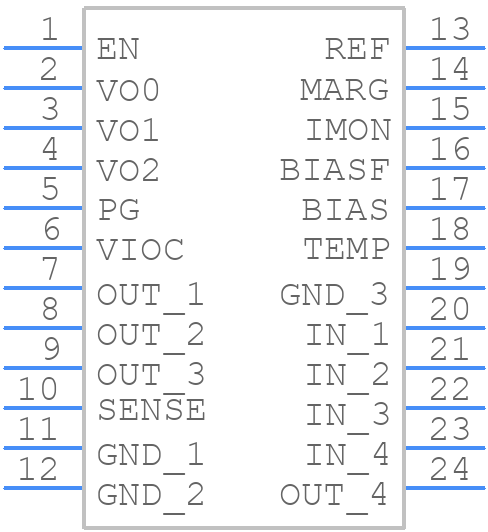

Symbol
LT3078AV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3078AV#PBF - Analog Devices PCB footprint - Other - Other - LT3078AV#PBF-2
click to zoom
3D Models
LT3078AV#PBF - Analog Devices - 3D model - Other - LT3078AV#PBF-2
click to zoom

LT3078AV#PBF Details

  • Manufacturer Part Number:

    LT3078AV#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-22

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.045 V

  • JESD-30 Code:

    R-XQCC-N22

  • Length:

    4 mm

  • Line Regulation-Max (%/V):

    0.0128

  • Load Regulation-Max(%):

    0.1015%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    22

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    4.2 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC22,.11X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Packing Method:

    TRAY

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT3078AV#PBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3078AV#PBF is 1.5A per channel, but it can be paralleled to achieve higher output currents.
  • To minimize noise and EMI, it is recommended to follow a star-ground configuration, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, the device should be placed away from high-frequency noise sources and sensitive analog circuits.
  • The recommended input capacitor value is 10uF to 47uF, and it should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize input impedance and ensure stability.
  • To ensure stability, the output capacitor should be a low-ESR ceramic capacitor, and the output voltage should be decoupled with a 10uF to 47uF capacitor. Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions.
  • The thermal shutdown temperature of the LT3078AV#PBF is 150°C, and it is triggered when the junction temperature exceeds this value.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3078AV#PBF Overview

Use the download button to access the LT3078AV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT307, or try a keyword search, such as Linear Regulator ICs
