LT3089EFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3089EFE#PBF - LDO Voltage Regulator, Adjustable, 1.2V to 36V input, 1.47 V drop., 0V to 34.5V/0.8A out, TSSOP-16

Download LT3089EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

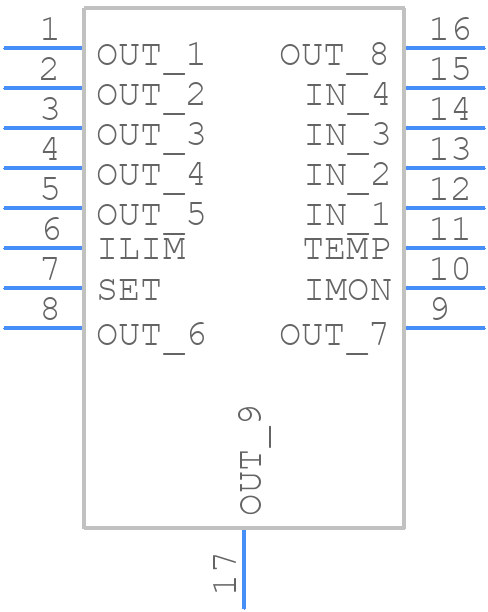

LT3089EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3089EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package
click to zoom
3D Models
LT3089EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package
click to zoom

LT3089EFE#PBF Details

  • Manufacturer Part Number:

    LT3089EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.65 V

  • Dropout Voltage1-Nom:

    1.47 V

  • Input-Output Voltage Differential-Max:

    36 V

  • Input-Output Voltage Differential-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.8 A

  • Output Voltage1-Max:

    34.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT3089EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3089EFE#PBF is 36V, but it's recommended to keep it below 30V for optimal performance and reliability.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the datasheet provides a stability analysis tool to help with this process.
  • The LT3089EFE#PBF can deliver a minimum output current of 1mA, making it suitable for low-power applications. However, the device can also deliver up to 2A of output current, depending on the input voltage and output voltage settings.
  • The output voltage of the LT3089EFE#PBF can be adjusted by using a resistive divider network between the output and the ADJ pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The LT3089EFE#PBF has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to follow the recommended operating conditions and thermal management guidelines.
