LT3091HR#PBF - Analog Devices

Description: LDO Regulator Neg 0V to -32V 1.5A Automotive 8-Pin(7+Tab) DDPAK Tube

Download LT3091HR#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

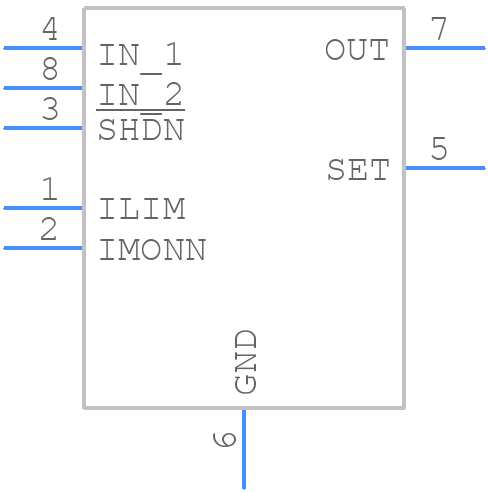

Symbol
LT3091HR#PBF - Analog Devices - PCB symbol
click to zoom

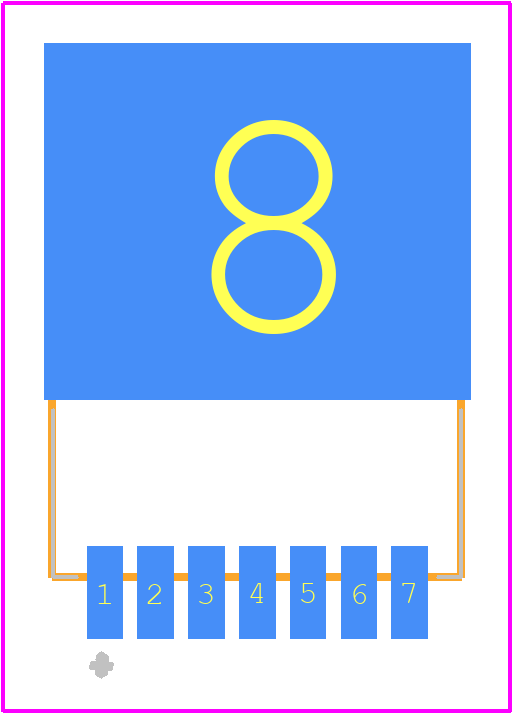

PCB Footprints
LT3091HR#PBF - Analog Devices PCB footprint - Other - Other - LT3091HR#PBF-2
click to zoom
3D Models
LT3091HR#PBF - Analog Devices - 3D model - Other - LT3091HR#PBF-2
click to zoom

LT3091HR#PBF Details

  • Manufacturer Part Number:

    LT3091HR#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    D2PAK-7

  • Pin Count:

    7

  • Manufacturer Package Code:

    05-08-1462

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.525 V

  • Dropout Voltage1-Nom:

    0.36 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    32 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.572 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    8.5 mm

LT3091HR#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3091HR is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed close to the output pin to minimize parasitic inductance.
  • The maximum output current that the LT3091HR can deliver is 1.5A, but it's recommended to keep it below 1.2A for reliable operation and to prevent overheating.
  • The output voltage of the LT3091HR can be adjusted by using a resistive divider network between the output pin and the adjust pin. The output voltage can be calculated using the formula: Vout = 1.22 x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
