LT3093EMSE#TRPBF - Analog Devices

Description: –20V, 200mA, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator

Download LT3093EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

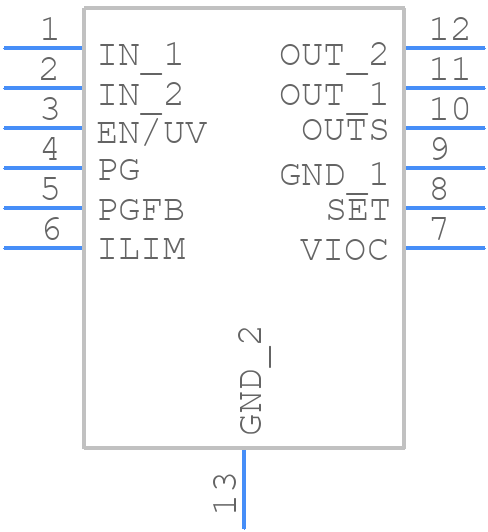

LT3093EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3093EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1666 Rev G)
click to zoom
3D Models
LT3093EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1666 Rev G)
click to zoom

LT3093EMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3093EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.33 V

  • Dropout Voltage1-Nom:

    0.19 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    19.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3093EMSE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3093EMSE is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To ensure the stability of the output voltage, it's essential to use a minimum output capacitance of 10uF with an ESR of 0.1Ω or less, and to keep the output voltage within the recommended range of 0.8V to 15V.
  • The maximum output current that the LT3093EMSE can deliver is 3A, but it's recommended to keep it below 2.5A for reliable operation and to avoid overheating.
  • To protect the LT3093EMSE from overheating, it's essential to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid operating the device at high input voltages and output currents simultaneously.
  • Yes, the LT3093EMSE is suitable for high-reliability applications, as it's built with high-quality components and has undergone rigorous testing and qualification. However, it's essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3093EMSE#TRPBF Overview

Use the download button to access the LT3093EMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT309, or try a keyword search, such as Linear Regulator ICs
