LT3093HDD#PBF - Analog Devices

Description: -20V, 200MA ULTRALOW NOISE/PSRR

Download LT3093HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

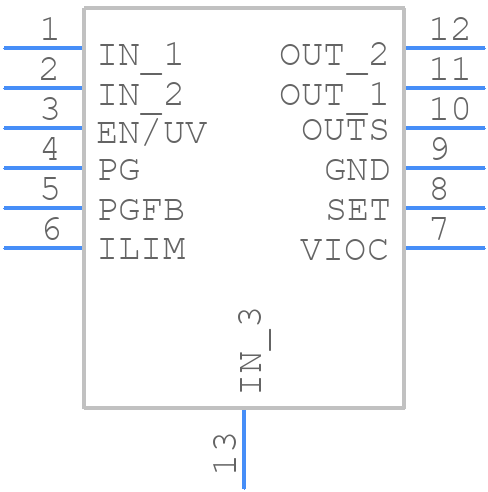

LT3093HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3093HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-12--
click to zoom
3D Models
LT3093HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DFN-12--
click to zoom

LT3093HDD#PBF Details

  • Manufacturer Part Number:

    LT3093HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.33 V

  • Dropout Voltage1-Nom:

    0.19 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    19.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3093HDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3093HDD is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor with a minimum ESR of 10mΩ and a capacitance of at least 10μF.
  • The LT3093HDD can deliver up to 3A of output current, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and to prevent overheating.
  • The output voltage of the LT3093HDD can be adjusted by using a resistive divider network between the output and the ADJ pin, with the output voltage determined by the ratio of the resistors and the internal reference voltage.
  • The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled low, the regulator is disabled, and the output voltage is turned off. When the EN pin is pulled high, the regulator is enabled, and the output voltage is turned on.
