LT3093IDD#TRPBF - Analog Devices

Description: –20V, 200mA, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator

Download LT3093IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

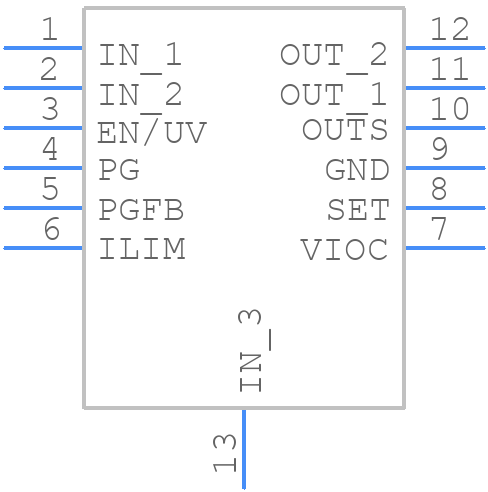

LT3093IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3093IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom
3D Models
LT3093IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom

LT3093IDD#TRPBF Details

  • Manufacturer Part Number:

    LT3093IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.33 V

  • Dropout Voltage1-Nom:

    0.19 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    19.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3093IDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3093IDD#TRPBF is 40V, but it's recommended to operate within the specified input voltage range of 3.6V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, ensure that the input voltage is within the specified range and that the device is operated within its recommended operating conditions.
  • The maximum output current that the LT3093IDD#TRPBF can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2A for optimal performance and reliability.
  • The output voltage of the LT3093IDD#TRPBF can be programmed using an external resistor divider network connected to the VOUT pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage. Refer to the datasheet for more information on how to calculate the output voltage and design the resistor divider network.
  • The thermal shutdown temperature of the LT3093IDD#TRPBF is typically around 150°C, but it can vary depending on the specific device and operating conditions. Refer to the datasheet for more information on thermal shutdown and thermal management.
