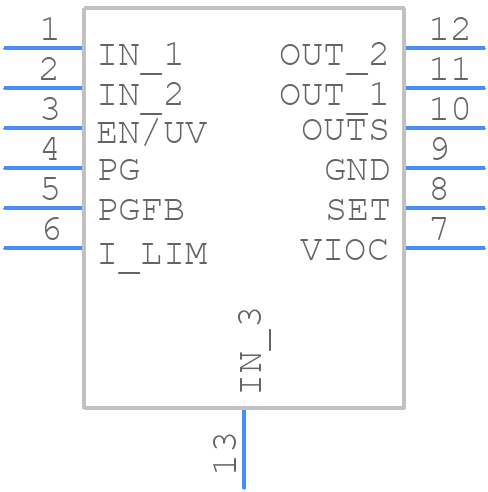

LT3094IMSE#PBF - Analog Devices

LT3094IMSE#PBF Details

• Manufacturer Part Number:

  LT3094IMSE#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MSOP-12

• Pin Count:

  12

• Manufacturer Package Code:

  05-08-1666

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2018-09-05

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.41 V

• Dropout Voltage1-Nom:

  0.235 V

• Input-Output Voltage Differential-Max:

  20 V

• Input-Output Voltage Differential-Min:

  2.3 V

• JESD-30 Code:

  R-PDSO-G12

• JESD-609 Code:

  e3

• Length:

  4.039 mm

• Load Regulation-Max(%):

  0.01%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  12

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  19.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP12,.19

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
