LT3380EUJM#PBF - Analog Devices

Description: Multioutput Power Management Solution with 4 Buck Switching and 3 LDO Linear Regulators with I2C

Download LT3380EUJM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

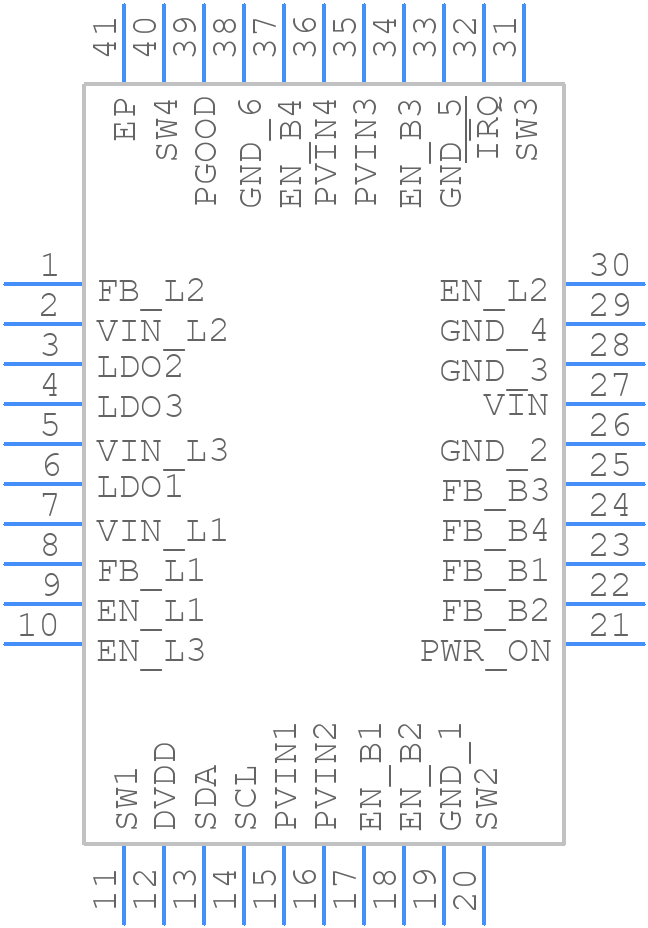

Symbol
LT3380EUJM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3380EUJM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-QFN (6x6)_2020
click to zoom
3D Models
LT3380EUJM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 40-QFN (6x6)_2020
click to zoom

LT3380EUJM#PBF Details

  • Manufacturer Part Number:

    LT3380EUJM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1681

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-03-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,0.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.75V

  • Width:

    6 mm

LT3380EUJM#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3380EUJM#PBF is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor with a low ESR, and avoid high-frequency noise on the input voltage.
  • The LT3380EUJM#PBF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • The power dissipation of the LT3380EUJM#PBF can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
  • Yes, the LT3380EUJM#PBF is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
