LT3380IUJM#PBF - Analog Devices

Description: Multioutput Power Management Solution with 4 Buck Switching and 3 LDO Linear Regulators with I2C

Download LT3380IUJM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

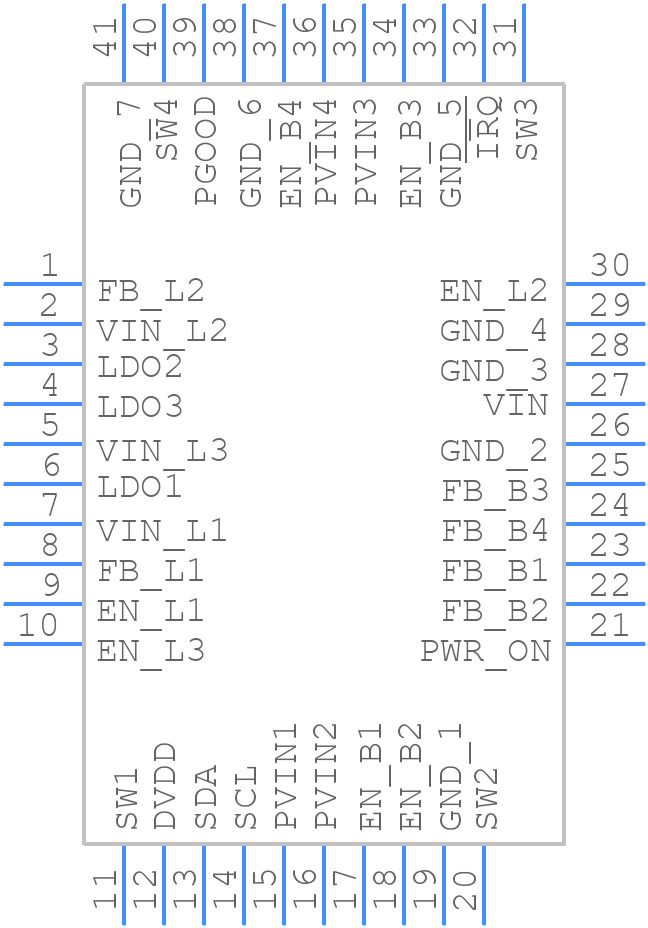

LT3380IUJM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3380IUJM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJM Package 40-Lead Plastic Side Wettable QFN (6mm × 6mm)
click to zoom
3D Models
LT3380IUJM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJM Package 40-Lead Plastic Side Wettable QFN (6mm × 6mm)
click to zoom

LT3380IUJM#PBF Details

  • Manufacturer Part Number:

    LT3380IUJM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1681

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-03-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,0.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.75V

  • Width:

    6 mm

LT3380IUJM#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3380IUJM#PBF is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet, and also consider the output capacitor's ESR and ESL values.
  • The LT3380IUJM#PBF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • The power dissipation of the LT3380IUJM#PBF can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
  • The LT3380IUJM#PBF is capable of delivering up to 5A of output current, but it's recommended to consider the thermal performance and power dissipation in high-current applications, and to use a suitable heat sink if necessary.
