LT3462AEDC#TRMPBF - Analog Devices

Description: Switching Voltage Regulators 300mA, Inverting 2.7MHz DC/DC Converter

Download LT3462AEDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

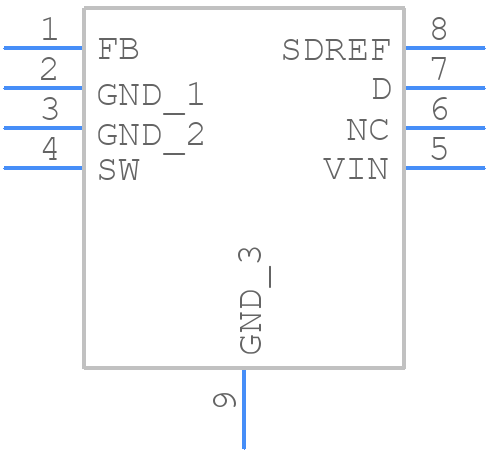

LT3462AEDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3462AEDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LT3462AEDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom

LT3462AEDC#TRMPBF Details

  • Manufacturer Part Number:

    LT3462AEDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    -38 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    3500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LT3462AEDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3462AEDC involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the feedback resistors are properly selected. Additionally, adding a small capacitor (e.g., 10nF) between the VFB pin and GND can help prevent oscillations.
  • The LT3462AEDC is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the LT3462AEDC is qualified for automotive and high-reliability applications, but additional testing and validation may be required. Consult the datasheet and Analog Devices' quality and reliability documentation for more information.
  • To troubleshoot issues with the LT3462AEDC, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3462AEDC#TRMPBF Overview

Use the download button to access the LT3462AEDC#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT346, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
