LT3462AEDC#TRPBF - Analog Devices

Description: Switching Voltage Regulators 300mA, Inverting 2.7 MHz DC/DC Converter

Download LT3462AEDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

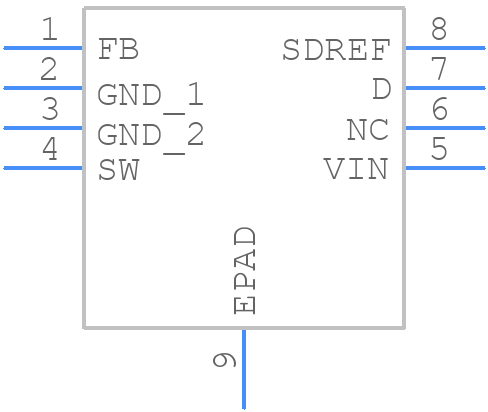

LT3462AEDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3462AEDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 (DFN)-1
click to zoom
3D Models
LT3462AEDC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC8 (DFN)-1
click to zoom

LT3462AEDC#TRPBF Details

  • Manufacturer Part Number:

    LT3462AEDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    -38 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    3500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LT3462AEDC#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3462AEDC involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The LT3462AEDC can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's important to ensure proper thermal management and to follow the recommended thermal design guidelines to prevent overheating.
  • Yes, the LT3462AEDC is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is designed to operate in harsh environments. However, it's still important to follow the recommended design guidelines and to perform thorough testing and validation to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT3462AEDC, start by checking the input and output voltages, as well as the current consumption. Verify that the device is properly powered and that the input and output capacitors are of the correct value and type. Check for any signs of overheating or physical damage to the device. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
