LT3467AEDDB#TRPBF - Analog Devices

Description: 1.1A Step-Up DC/DC Converter with Integrated Soft-Start

Download LT3467AEDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

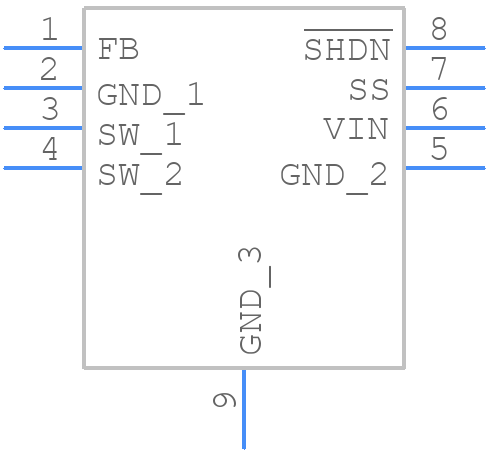

LT3467AEDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3467AEDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom
3D Models
LT3467AEDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom

LT3467AEDDB#TRPBF Details

  • Manufacturer Part Number:

    LT3467AEDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    HIGH OUTPUT VOLTAGE UPTO 40V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    40 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3467AEDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3467AEDDB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The LT3467AEDDB can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's important to ensure proper thermal management and to follow the recommended thermal design guidelines to prevent overheating.
  • Yes, the LT3467AEDDB is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's still important to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
  • To troubleshoot issues with the LT3467AEDDB, start by checking the input and output voltages, as well as the current consumption. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
