LT3491EDC#TRPBF - Analog Devices

Description: IC LED DRVR RGLTR DIM 260MA 6DFN

Download LT3491EDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

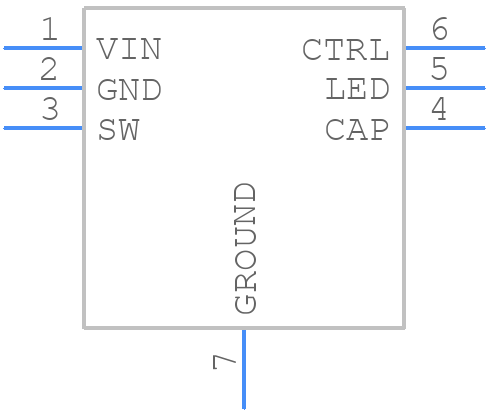

LT3491EDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3491EDC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LT3491EDC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)
click to zoom

LT3491EDC#TRPBF Details

  • Manufacturer Part Number:

    LT3491EDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    12 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3491EDC#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3491EDC involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LT3491EDC involves selecting the right values for the compensation resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements and the desired transient response.
  • The maximum input voltage that the LT3491EDC can handle is 36V. Exceeding this voltage can damage the IC. It's recommended to add input voltage protection, such as a voltage regulator or a TVS diode, to prevent damage from voltage spikes or surges.
  • To ensure stability, it's essential to follow the recommended layout and compensation guidelines, and to select the right output capacitor value. Additionally, the input voltage should be well-regulated, and the output load should be within the recommended range.
  • The LT3491EDC is rated for operation up to 125°C. However, the IC's performance and reliability may degrade at high temperatures. It's recommended to derate the IC's performance and to ensure good thermal management in high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3491EDC#TRPBF Overview

Use the download button to access the LT3491EDC#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT349, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
