LT3494EDDB#TRMPBF - Analog Devices

Description: Linear Technology LT3494EDDB#TRMPBF, Boost Converter, Boost Converter 0.027A Adjustable, Selectable 40, 50 kHz, 8-Pin

Download LT3494EDDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

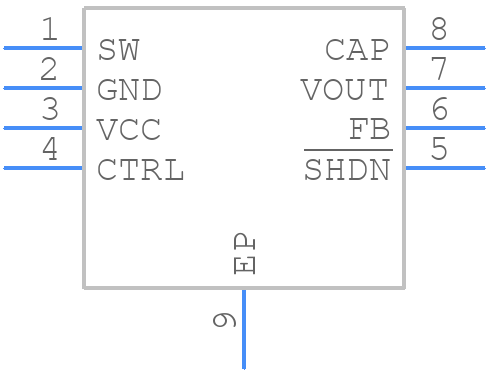

LT3494EDDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3494EDDB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 2mm)_1
click to zoom
3D Models
LT3494EDDB#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 2mm)_1
click to zoom

LT3494EDDB#TRMPBF Details

  • Manufacturer Part Number:

    LT3494EDDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3494EDDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3494EDDB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LT3494EDDB can be optimized by selecting the correct values for the compensation resistors and capacitors based on the output voltage and current requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
  • The maximum ambient temperature range for the LT3494EDDB is -40°C to 125°C. However, the device can operate at a higher temperature range with derating. It's recommended to consult the datasheet for more information on temperature derating.
  • Yes, the LT3494EDDB is suitable for high-reliability applications. It's manufactured using a high-reliability process and is screened to ensure high reliability. However, it's recommended to consult the datasheet and the manufacturer's reliability report for more information.
  • To ensure the LT3494EDDB is properly soldered, follow the recommended soldering profile and use a solder with a melting point below 260°C. Avoid applying excessive heat or force during the soldering process, and ensure the device is properly cleaned and dried before soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3494EDDB#TRMPBF Overview

Use the download button to access the LT3494EDDB#TRMPBF schematic symbol, PCB footprint, and 3D model.
