LT3494EDDB#TRPBF - Analog Devices

Description: Conv DC-DC 2.3V to 16V Step Up Single-Out 40V 8-Pin DFN EP T/R

Download LT3494EDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

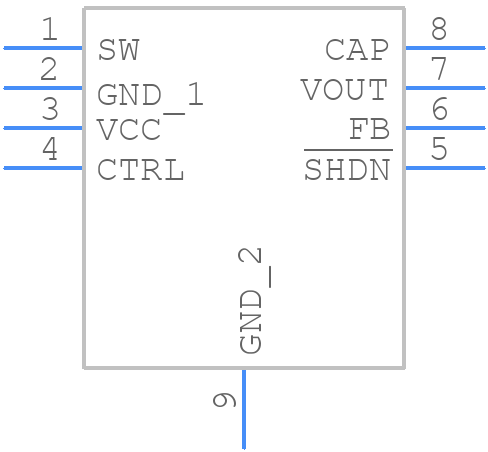

LT3494EDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3494EDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom
3D Models
LT3494EDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom

LT3494EDDB#TRPBF Details

  • Manufacturer Part Number:

    LT3494EDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3494EDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3494EDDB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise.
  • To optimize the compensation network, start with the recommended values in the datasheet and then adjust the resistors and capacitors based on the specific application and desired performance. Simulation tools like LTspice can be helpful in this process.
  • The maximum input voltage that the LT3494EDDB can handle is 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and to prevent damage to the IC.
  • The LT3494EDDB is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use thermal management techniques, such as heat sinks or thermal interfaces, to keep the IC within its operating temperature range.
  • To ensure the reliability of the LT3494EDDB, follow proper PCB design and manufacturing guidelines, use a clean and dry environment, and avoid exposing the IC to mechanical stress, moisture, or contamination. Additionally, consider using a redundant design and implementing fault detection and correction mechanisms.
