LT3500EMSEPBF - Analog Devices

Description: n Wide Input Range: 3V to 36V Operating, 40V Maximum n Short-Circuit Protected Over Full Input Range n 2A Output Current Capability n Adjustable/Synchronizable Fixed Frequency Operation from 250kHz to 2.2MHz n Soft-Start/Tracking Capability n Output Adjustable Down to 0.8V n Adjustable Linear Regulator/Driver with 13mA Output Capability n Power Good Comparator with Complimentary Outputs n Low Shutdown Current: 12μA n Thermally Enhanced 3mm × 3mm DFN or 16-Pin MSOP Package

Download LT3500EMSEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

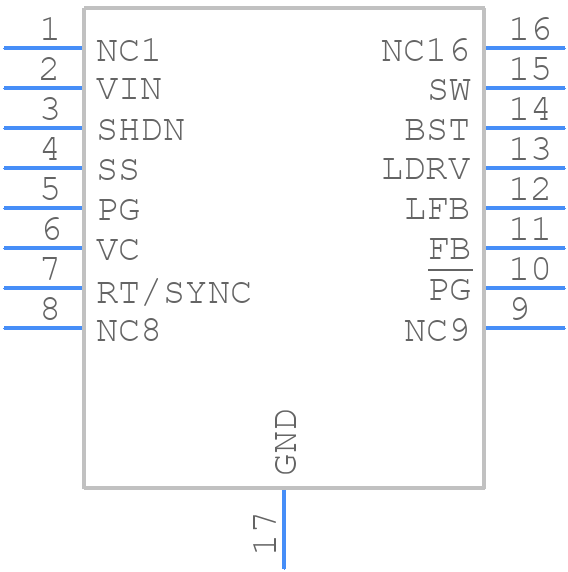

LT3500EMSEPBF - Analog Devices - PCB symbol
