LT3502EMS#PBF - Analog Devices

Description: Linear Technology LT3502EMS#PBF, Step Down DC-DC Converter, 500mA, 10-Pin MSOP

Download LT3502EMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

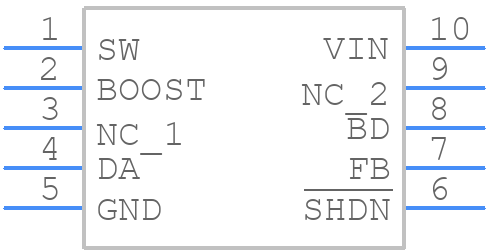

Symbol
LT3502EMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3502EMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10(MSOP)
click to zoom
3D Models
LT3502EMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS10(MSOP)
click to zoom

LT3502EMS#PBF Details

  • Manufacturer Part Number:

    LT3502EMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3502EMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3502EMS#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor. Also, avoid using long input and output traces, and keep the feedback network as short as possible.
  • The LT3502EMS#PBF is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may vary depending on the specific application and the thermal design of the system.
  • Yes, the LT3502EMS#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications.
  • To calculate the power dissipation of the LT3502EMS#PBF, you need to consider the input voltage, output voltage, output current, and the efficiency of the converter. You can use the following formula: Pd = (Vin * Iin) - (Vout * Iout), where Pd is the power dissipation, Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current.
