LT3507AHUHF#PBF - Analog Devices

Description: Switching Voltage Regulators Triple Monolithic Step-Down Regulator with LDO

Download LT3507AHUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

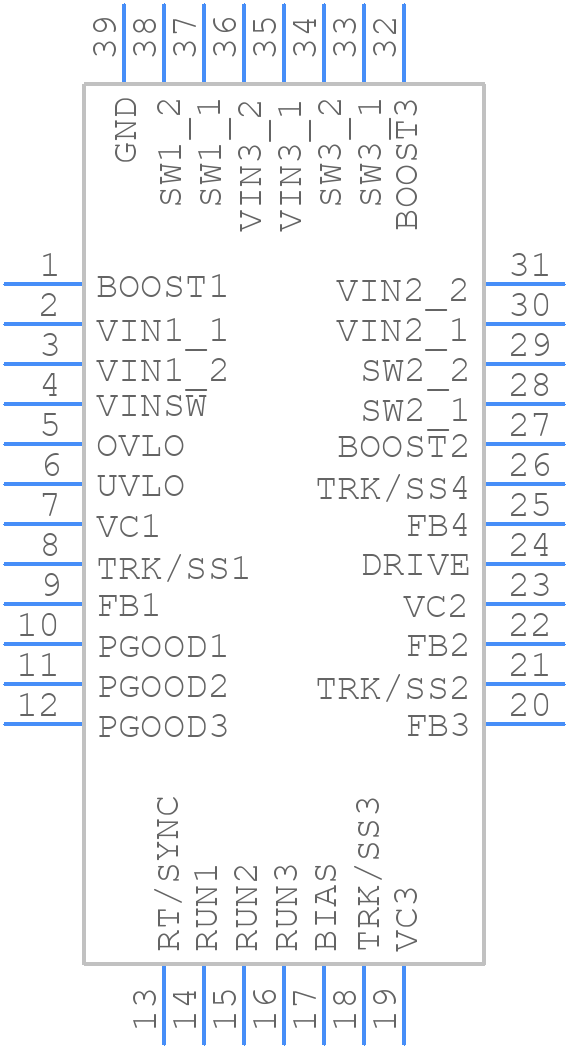

Symbol
LT3507AHUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3507AHUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)
click to zoom
3D Models
LT3507AHUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)
click to zoom

LT3507AHUHF#PBF Details

  • Manufacturer Part Number:

    LT3507AHUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 7 MM, LEAD FREE, PLASTIC, MO-220WHKD, QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AS LDO REGULATOR

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LT3507AHUHF#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, using a low-ESR output capacitor, placing the input capacitor close to the VIN pin, and minimizing the loop area of the feedback network can help prevent oscillations.
  • The maximum ambient temperature for reliable operation of the LT3507AHUHF#PBF is 125°C. However, the device can operate at higher temperatures with derating. It's essential to consider the thermal design and heat sinking to ensure reliable operation within the specified temperature range.
  • While ceramic capacitors can be used for the output filter, they may not be the best choice due to their high equivalent series resistance (ESR) and potential for resonance. A low-ESR electrolytic or tantalum capacitor is recommended for the output filter to ensure stability and optimal performance.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily determined by the output capacitor value, ESR, and the switching frequency. The noise is primarily determined by the switching frequency, output capacitor value, and the input voltage ripple.
