LT3509IMSETRPBF - Analog Devices

Description: Two 700mA Switching Regulators with Internal Power Switches n Wide 3.6V to 36V Operating Range n Overvoltage Lockout Protects Circuit Through 60V Supply Transients n Short-Circuit Robust n Low Dropout Voltage: 95% Maximum Duty Cycle n Adjustable 300kHz to 2.2MHz Switching Frequency Synchronizable Over the Full Range n Uses Small Inductors and Ceramic Capacitors n Integrated Boost Diodes n Internal Compensation n Thermally Enhanced 14-Lead (4mm × 3mm) DFN and 16 Lead MSOP Packages

Download LT3509IMSETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

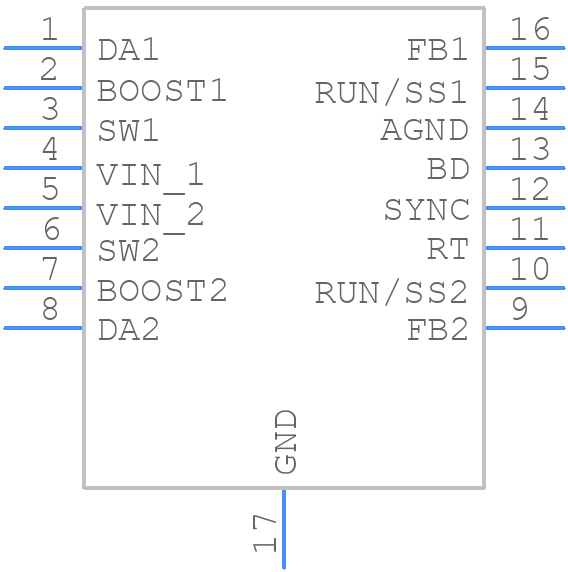

LT3509IMSETRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3509IMSETRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT3509IMSETRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT3509IMSETRPBF Details

  • Manufacturer Part Number:

    LT3509IMSETRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3509IMSETRPBF Overview

Use the download button to access the LT3509IMSETRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT350, or try a keyword search, such as Switching Regulator or Controllers
